Play PyTorch Stable Diffusion and ONNX, Ollama on Intel Core Ultra 5 225H Ubuntu 25.04
在几个月前，我购买了一个 8845HS 的主机，尝试了一番 ROCm，AMD 在 API 的 iGPU 支持上可以说相当慢了，直到目前也只是在利用 DirectML 和 ONNX 的能力实现 iGPU 上运行模型，非常费劲。
Intel 这边就优雅且慷慨的多，oneAPI 统一了 CPU GPU NPU 多端的运行，看起来非常的靠谱，并且提供了 PyTorch+XPU 的后端，已经并入官方仓库，意味着 PyTorch 项目只需要简单的修改下模型的 device 就可以推理了，真是一种方便你我他的好方案。
不过有了上次 8845HS 的经验后，我也没有贸然下单，总想着先找个机器测一测吧，几经辗转，发现 Intel 的 Tiber Cloud 已经可以用了，开了台机器简单测了几个场景，相较 ROCm 之前在 iGPU 的各种报错，Intel 的 XPU 后端顺利的过于幸福。
Tiber 虽然提供的是 Intel 的商用 GPU，但既然官方表示是一视同仁，我相信 iGPU 的支持也不会差，立刻购入了一个摸到支持门坎的 Ultra 5 225H 的迷你主机，瞧瞧是什么情况。
PyTorch
PyTorch+XPU 安装起来也非常简单，通过这个命令即可：
pip3 install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/xpu这个官方编译的 XPU 版本集成了 https://github.com/intel/torch-xpu-ops 的算子支持
先测一下 Kokoro 这个 TTS 模型
from kokoro import KPipeline
from IPython.display import display, Audio
import soundfile as sf
pipeline = KPipeline(lang_code='a', device='xpu')
text = '''
[Kokoro](/kˈOkəɹO/) is an open-weight TTS model with 82 million parameters. Despite its lightweight architecture, it delivers comparable quality to larger models while being significantly faster and more cost-efficient. With Apache-licensed weights, [Kokoro](/kˈOkəɹO/) can be deployed anywhere from production environments to personal projects.
'''
generator = pipeline(text, voice='af_heart')
for i, (gs, ps, audio) in enumerate(generator):
print(i, gs, ps)
display(Audio(data=audio, rate=24000, autoplay=i==0))
sf.write(f'{i}.wav', audio, 24000)

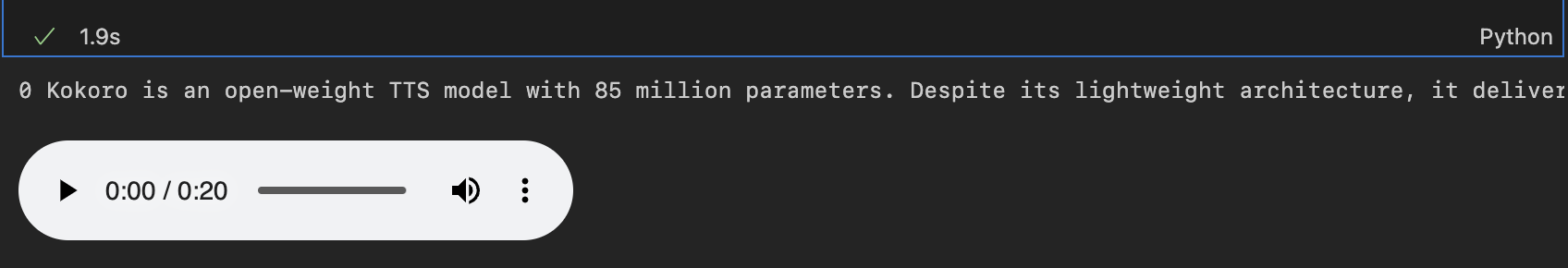

这个 20s 的音频首次生成大概是 4s，之后大概花费 2s 左右
ONNX
ONNX 版本的 Kokoro
import soundfile as sf
from misaki import en, espeak
from kokoro_onnx import Kokoro
# Misaki G2P with espeak-ng fallback
fallback = espeak.EspeakFallback(british=False)
g2p = en.G2P(trf=False, british=False, fallback=fallback)
# Kokoro
kokoro = Kokoro("kokoro-v1.0.onnx", "voices-v1.0.bin")
# Phonemize
text = '''
[Kokoro](/kˈOkəɹO/) is an open-weight TTS model with 82 million parameters. Despite its lightweight architecture, it delivers comparable quality to larger models while being significantly faster and more cost-efficient. With Apache-licensed weights, [Kokoro](/kˈOkəɹO/) can be deployed anywhere from production environments to personal projects.
'''
phonemes, _ = g2p(text)
# Create
samples, sample_rate = kokoro.create(phonemes, "af_heart", is_phonemes=True)
# Save
sf.write("audio.wav", samples, sample_rate)
print("Created audio.wav")Intel 可以通过 pip install onnxruntime-openvino 来开启 GPU 的支持，稍微修改下 Kokoro 这个类
providers = [('OpenVINOExecutionProvider', {'device_type': 'GPU'})]很遗憾，出错了
RuntimeException: [ONNXRuntimeError] : 6 : RUNTIME_EXCEPTION : Exception during initialization: /onnxruntime/onnxruntime/core/providers/openvino/ov_interface.cc:98 onnxruntime::openvino_ep::OVExeNetwork onnxruntime::openvino_ep::OVCore::CompileModel(std::shared_ptr<const ov::Model>&, std::string&, ov::AnyMap&, const std::string&) [OpenVINO-EP] Exception while Loading Network for graph: OpenVINOExecutionProvider_OpenVINO-EP-subgraph_1_0Exception from src/inference/src/cpp/core.cpp:109:
Exception from src/inference/src/dev/plugin.cpp:53:
Check 'inputRank == 2 || inputRank == 4 || inputRank == 5' failed at src/plugins/intel_gpu/src/plugin/ops/interpolate.cpp:37:
Mode 'linear_onnx' supports only 2D or 4D, 5D tensorsPaddleOCR-onnx

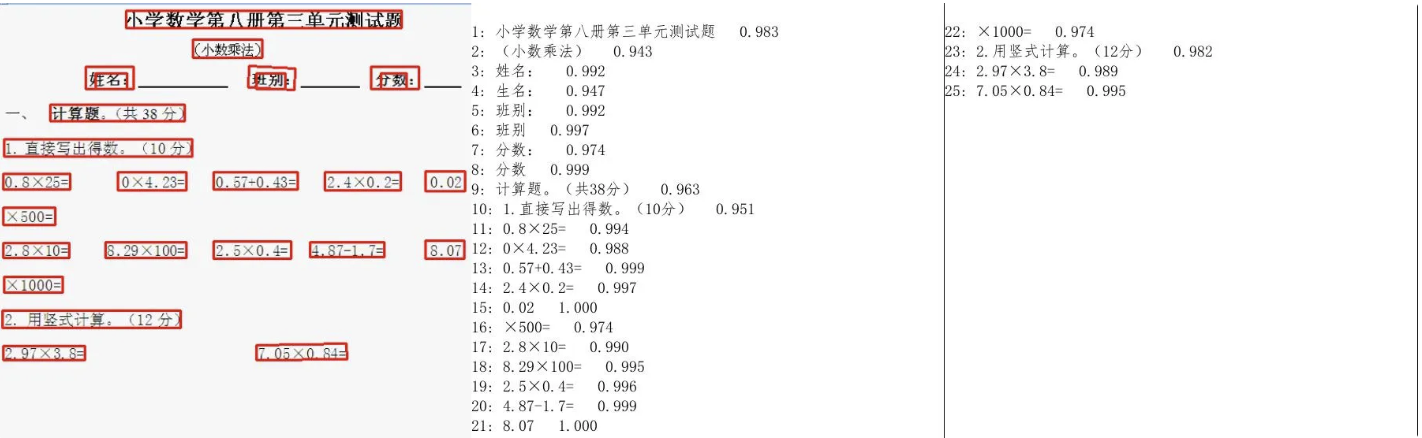

PaddleOCR-onnx 需要修改一下 PredictBase 这个类
if use_gpu:
providers = [('OpenVINOExecutionProvider', {
'device_type': 'GPU'})]也可以使用 'device_type': 'NPU' 'device_type': 'HETERO:GPU,CPU' 这类方式指定计算方式
然后运行项目自带的 test_ocr.py 即可，开启 use_gpu=True
import cv2
import time
from onnxocr.onnx_paddleocr import ONNXPaddleOcr, sav2Img
import sys
import time
model = ONNXPaddleOcr(use_angle_cls=False, use_gpu=True)
img = cv2.imread('./onnxocr/test_images/00006737.jpg')
s = time.time()
result = model.ocr(img)
e = time.time()
for box in result[0]:
print(box)
print("total time: {:.3f}".format(e - s))
sav2Img(img, result, name=str(time.time())+'.jpg')
运行良好，花费了大概 1s
Ollama

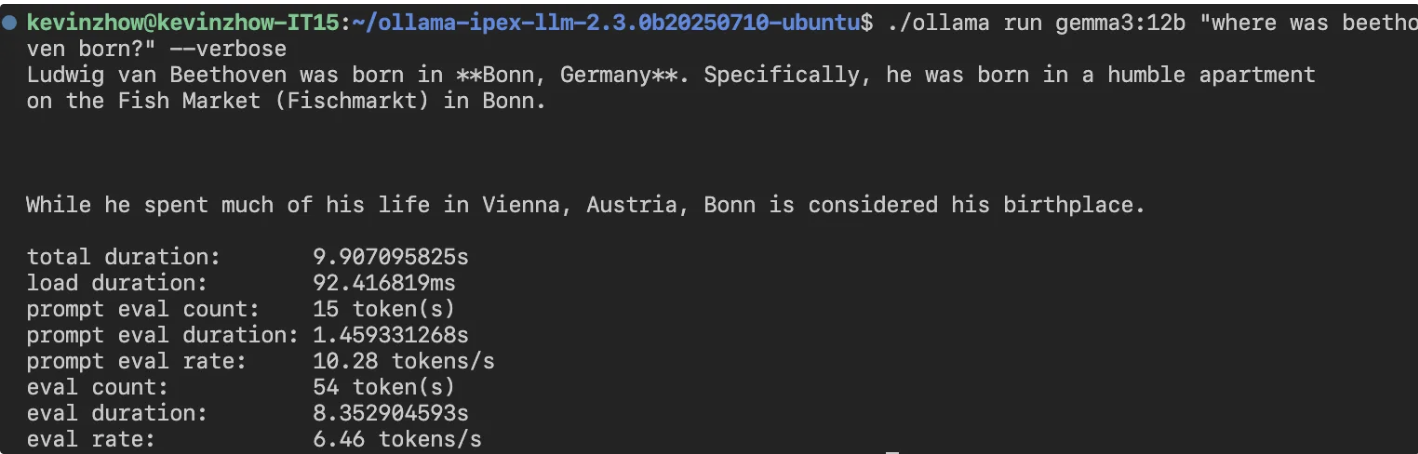

Ollama 的 Intel 支持需要通过 https://github.com/intel/ipex-llm 这个项目，使用 Intel 编译的 Ollama 在运行时可以看到
get_memory_info: [warning] ext_intel_free_memory is not supported (export/set ZES_ENABLE_SYSMAN=1 to support), use total memory as free memory
get_memory_info: [warning] ext_intel_free_memory is not supported (export/set ZES_ENABLE_SYSMAN=1 to support), use total memory as free memory看来自己不需要解决 iGPU 有多少显存的问题
比 8845HS 的 8 tokens/s 慢一些，不知道未来 ipex-llm 是不是还能在这里加把劲。
这次玩下来，PyTorch 的支持挺不错，足以作为一个推理机器使用。
Stable Diffusion
SD 有两个选择，一个是 Diffusers，一个则是 stable-diffusion.cpp
Diffusers
Flux 占用的内存真的不少，32GB 内存跑 FP16 完全不够，官方也给出了的例子使用 GGUF 量化模型的方法，不过这个方案还是不够省内存
import torch
from diffusers import FluxPipeline, FluxTransformer2DModel, GGUFQuantizationConfig
ckpt_path = (
"./models/flux1-dev-Q4_0.gguf"
)
transformer = FluxTransformer2DModel.from_single_file(
ckpt_path,
quantization_config=GGUFQuantizationConfig(compute_dtype=torch.bfloat16),
torch_dtype=torch.bfloat16,
)
pipe = FluxPipeline.from_pretrained(
"black-forest-labs/FLUX.1-dev",
transformer=transformer,
torch_dtype=torch.bfloat16
)
pipe.enable_model_cpu_offload()
prompt = "A cat holding a sign that says hello world"
image = pipe(prompt,
generator=torch.manual_seed(0),
num_inference_steps=20,
height=512,
width=512
).images[0]
image.save("flux-gguf.png")这部分我参考了此处的实现 ，通过分步的方式节省了不少内存
import torch
from diffusers import FluxPipeline, FluxTransformer2DModel, GGUFQuantizationConfig
import gc
def flush():
gc.collect()
torch.xpu.empty_cache()
def main():
# downloaded from https://huggingface.co/city96/FLUX.1-dev-gguf
gguf_file = "./models/flux1-dev-Q4_K_S.gguf"
model_id = "black-forest-labs/FLUX.1-dev"
pipeline = FluxPipeline.from_pretrained(
model_id,
transformer=None,
vae=None,
torch_dtype=torch.bfloat16
).to("xpu")
prompt = "a lovely cat holding a sign says 'hello world'"
with torch.no_grad():
prompt_embeds, pooled_prompt_embeds, text_ids = pipeline.encode_prompt(
prompt=prompt,
prompt_2=None,
)
print("text_encoder:")
print(f"torch.xpu.max_memory_allocated: {torch.xpu.max_memory_allocated()/ 1024**3:.2f} GB")
del pipeline
flush()
transformer = FluxTransformer2DModel.from_single_file(
gguf_file,
quantization_config=GGUFQuantizationConfig(compute_dtype=torch.bfloat16),
torch_dtype=torch.bfloat16
)
pipeline = FluxPipeline.from_pretrained(
model_id,
transformer=transformer,
text_encoder=None,
text_encoder_2=None,
tokenizer=None,
tokenizer_2=None,
torch_dtype=torch.bfloat16
).to("xpu")
image = pipeline(
prompt_embeds=prompt_embeds,
pooled_prompt_embeds=pooled_prompt_embeds,
generator=torch.Generator("xpu").manual_seed(0),
height=512,
width=512,
num_inference_steps=20
).images[0]
save_file = gguf_file.replace(".gguf", ".jpg")
image.save(save_file)
print("transformer:")
print(f"torch.xpu.max_memory_allocated: {torch.xpu.max_memory_allocated()/ 1024**3:.2f} GB")
if __name__ == "__main__":
main()Q4 结果如下
Loading checkpoint shards: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████| 2/2 [00:00<00:00, 94.74it/s]
Loading pipeline components...: 60%|████████████████████████████████████████████████████████▍ | 3/5 [00:00<00:00, 28.63it/s]You set `add_prefix_space`. The tokenizer needs to be converted from the slow tokenizers
Loading pipeline components...: 100%|██████████████████████████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 14.99it/s]
text_encoder:
torch.xpu.max_memory_allocated: 9.32 GB
Loading pipeline components...: 100%|██████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:00<00:00, 48.13it/s]
100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [02:52<00:00, 8.62s/it]
transformer:
torch.xpu.max_memory_allocated: 9.32 GB
Q8 结果如下
Loading checkpoint shards: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████| 2/2 [00:00<00:00, 19.84it/s]
Loading pipeline components...: 100%|██████████████████████████████████████████████████████████████████████████████████████████████| 5/5 [00:00<00:00, 11.03it/s]
text_encoder:
torch.xpu.max_memory_allocated: 9.32 GB
Loading pipeline components...: 100%|██████████████████████████████████████████████████████████████████████████████████████████████| 3/3 [00:00<00:00, 45.77it/s]
100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [01:41<00:00, 5.06s/it]
transformer:
torch.xpu.max_memory_allocated: 12.61 GB
Q8 比 Q4 更快，神奇，似乎是因为硬件有原生 Q8 的加速支持
stable-diffusion.cpp
stable-diffusion.cpp 除了对后端支持很全面（ CUDA, Metal, Vulkan, OpenCL and SYCL）另一大优点应该就是占内存比较少了，结合其 Python 的绑定 stable-diffusion-cpp-python可以轻松跑起来 Q8 的模型
from stable_diffusion_cpp import StableDiffusion
import torch
def callback(step: int, steps: int, time: float):
print("Completed step: {} of {}".format(step, steps))
gen = torch.Generator(device="xpu").manual_seed(0)
stable_diffusion = StableDiffusion(
diffusion_model_path="./models/flux1-dev-Q8_0.gguf", # In place of model_path
clip_l_path="./models/clip_l.safetensors",
t5xxl_path="./models/t5xxl_fp16.safetensors",
vae_path="./models/ae.safetensors",
vae_decode_only=True, # Can be True if we dont use img_to_img
)
output = stable_diffusion.txt_to_img(
prompt="a lovely cat holding a sign says 'hello world'",
sample_steps=20,
width=512, # Must be a multiple of 64
height=512, # Must be a multiple of 64
cfg_scale=1.0, # a cfg_scale of 1 is recommended for FLUX
sample_method="euler", # euler is recommended for FLUX
progress_callback=callback,
seed=gen.initial_seed()
)
output[0].save("output.png") Q4 结果如下
stable-diffusion.cpp:1525 - sampling completed, taking 113.58s
stable-diffusion.cpp:1533 - generating 1 latent images completed, taking 113.58s
stable-diffusion.cpp:1536 - decoding 1 latents
ggml_extend.hpp:1148 - vae compute buffer size: 1664.00 MB(VRAM)
stable-diffusion.cpp:1129 - computing vae [mode: DECODE] graph completed, taking 11.54s
stable-diffusion.cpp:1546 - latent 1 decoded, taking 11.54s
stable-diffusion.cpp:1550 - decode_first_stage completed, taking 11.54s
stable-diffusion.cpp:1684 - txt2img completed in 138.73s
Q8 结果如下
stable-diffusion.cpp:1525 - sampling completed, taking 117.70s
stable-diffusion.cpp:1533 - generating 1 latent images completed, taking 117.70s
stable-diffusion.cpp:1536 - decoding 1 latents
ggml_extend.hpp:1148 - vae compute buffer size: 1664.00 MB(VRAM)
stable-diffusion.cpp:1129 - computing vae [mode: DECODE] graph completed, taking 11.57s
stable-diffusion.cpp:1546 - latent 1 decoded, taking 11.57s
stable-diffusion.cpp:1550 - decode_first_stage completed, taking 11.57s
stable-diffusion.cpp:1684 - txt2img completed in 144.15s
Monitor
可以使用 Intel 提供的性能查看工具 intel_gpu_top
也可以使用 watch -n 1 xpu-smi stats -d 0
